ElectronicsJ Inc

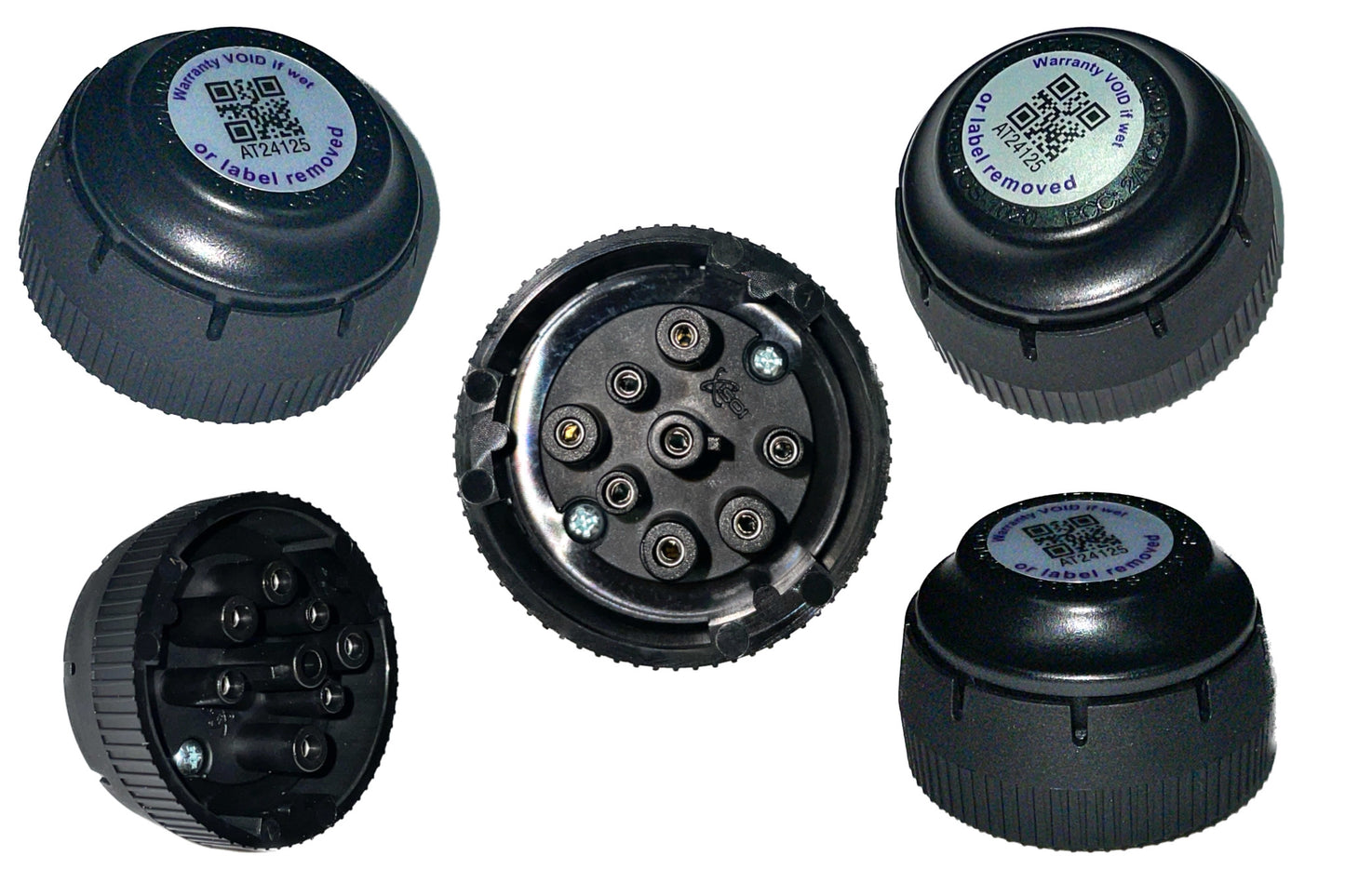

*Micro ELD Device for Trucks

*Micro ELD Device for Trucks

Precio habitual $172.99 USD
Precio habitual Precio de oferta $172.99 USD
Oferta Agotado
IO-1020 Micro ELD

The sleek and reliable design of the IOSiX Micro ELD makes it a breeze to track hours and meet FMCSA requirements.

Designed to handle a large number of known vehicle-specification deviations in the field, the Micro ELD provides robust data acquisition across a wide range of makes and models.

Data gathered by the Micro ELD can be transferred to a phone or tablet via a Bluetooth or WiFi connection, enabling trouble-free hours-tracking and document submission. You can connect this device directly to the J1939 port found in most heavy-duty trucks, or easily adapt it to RP1226, OBD-II, or J1708 with a converter cable.

KEY SPECIFICATIONS

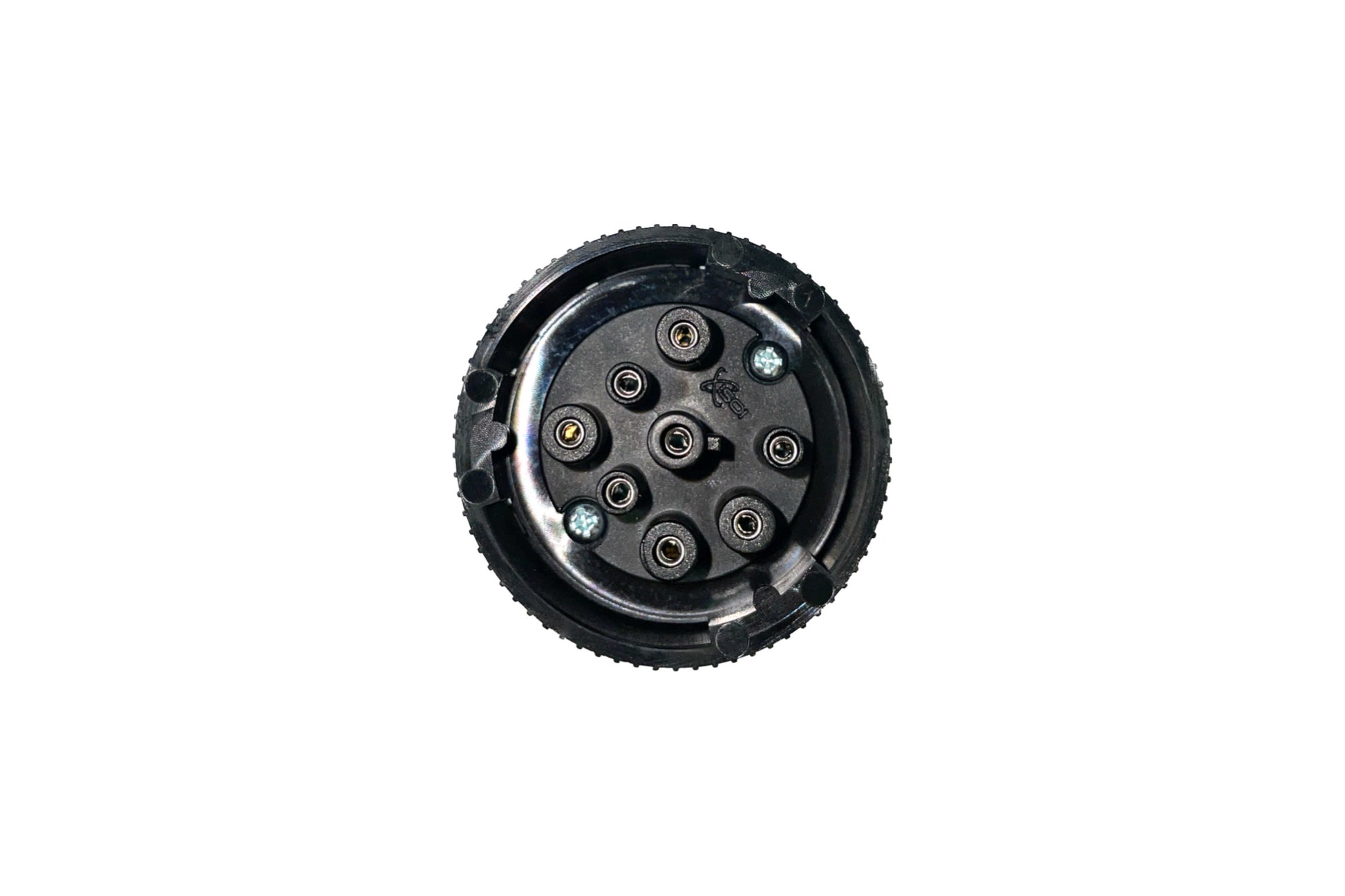

Built-in J1939 Type II 9-pin connector supporting both new and legacy vehicles
WiFi 801.11b/g/n up to 150Mbps and simultaneous AP and Station modes
Bluetooth 4.2 Class 1 supporting BR/EDR and LE dual-mode
Multi-constellation GNSS receiver with built-in high-gain antenna

Features
WiFi 801.11b/g/n up to 150Mbps and simultaneous AP and Station modes
Bluetooth 4.2 Class 1 supporting BR/EDR and LE dual-mode
Multi-constellation GNSS receiver with built-in high-gain antenna
High-efficiency switching power supplies for low temperature operation
Over-, under-, and reverse-voltage protection exceeding automotive standards
ESD protection exceeding automotive standards
Full-color RGB LED for status indication
Dual-core 32-bit Tensilica processor at 240MHz
Built-in J1939 Type II 9-pin connector supporting both new and legacy vehicles
Physical layer and protocol auto-detection/auto-bauding
Dual-wire CAN interface supporting 1Mbps [1]
Dual-wire J1708 interface
J1939 protocol support
ISO 15765 and ISO 14229 (OBD-II) protocol support
J1587 protocol support
Built-in flash memory
Support for IOSiX ELD APIs for Android and iOS
Support for IOSiX Advanced Vehicle Parameter Database
FCC/IC (US/Canada and other countries)
CE (Europe and other regions)
Dimensions: 40x40x28mm
Mass: 28g
Temperature range: -40 to +125 C
Material: Nylon/Polycarbonate
